CT-30W数字显示表
Digital Indicator
Feature
The product shows changes the sensor (Proximity sensor) signal of the rotary body with input receiving rpm (revolution per minuite), current output into digital display and analogue output as indicator.
Best for measuring RPM
Calibration of pulse / circle input
System error automatic return
Specification
Application sensor |
Proximith sensor(MP-981) |
Sensor authorized voltage |
DC 12V |
Measuring range |
Input frequency 5kHz, 1~350 pulse/circle |
Measuring accurracy |
0.05% |
Display range |
0~6000 |
Minimum unit |
1RPM |
Character height |
7 segment LED 14mm |
Output |
DC 0~10V (4~20mA : Option) |
Contact capacity |
AC 250V 5A |
Relay life span |
Over 5 million times |
Usage temperature range |
-10°C~60°C |
Humidity |
Less than 80% RH |
Power |
AC 220V 50/60Hz |
Weight |
About 800g |
Function
Peak & Sample hold
Upper and lower limit comparison output
4 Relay out
Analog out(DAC)
Option
OP-02 : RS232C serial interface
OP-03 : RS485 multi drop interface

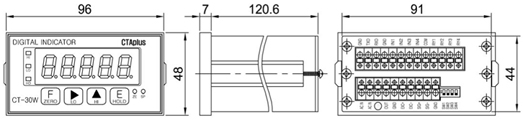

Dimension
