DI-10P数字显示器
Digital Indicator
Feature
The products have digital display, analogue putput and relay output function as a suitable model of LPS among sensor with voltage output.
Best for measuring displacement
Sampling speed : 15 times/sec
High accuracy (over ±0.02% F.S) and stability
Calibration of actual load and sensor output value
Filtering: 10Hz, 100Hz, 1kHz, W/B
System error automatic return
Specification
Application sensor |
Voltage output sensor |
Sensor authorized voltage |
DC 10V (DC 5V : Option) |
Signal input range |
DC 0~10V(Resistance type) |
Display range |
-19999~+99999 |
Character height |
5 digit 7 segment FND |
Zero variation |
Within 0.5μV/°C |
Sensitivity variation |
Within 0.01%/°C |
Output |
DC0~10V(4~20mA : Dip S/W adjust) |
Relay mode |
Hysteresis, Range function |
Contact capacity |
AC 125V-0.5A, AC 24V-1A |
Power |
AC220V 50/60Hz |
Weight |
About 700g |
Option
OP-C1 : RS232C serial interface
OP-C2 : RS485 multidrop interface
OP-C3 : BCD paralle out

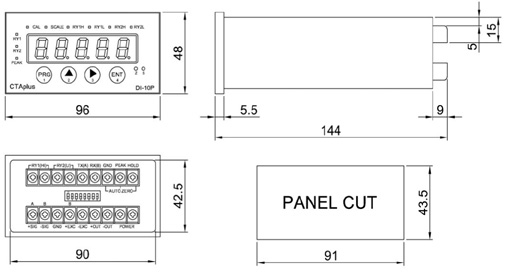

Dimension
