DI-10A数字显示器
Digital Indicator
Feature
The products applied strain gauge have digital display, analogue and relay output function as a suitable model of sensor(load, torque, displacement,pressure) and of sensor having micro DC voltage.
Best for measuring micro voltage output sense (load, torque)
Sampling speed : 15 times/sec
High accuracy(over ±0.02% F.S) and stability
Calibration of actual load and sensor output value
Filtering: 10Hz, 100Hz, 1kHz, W/B
System error automatic return

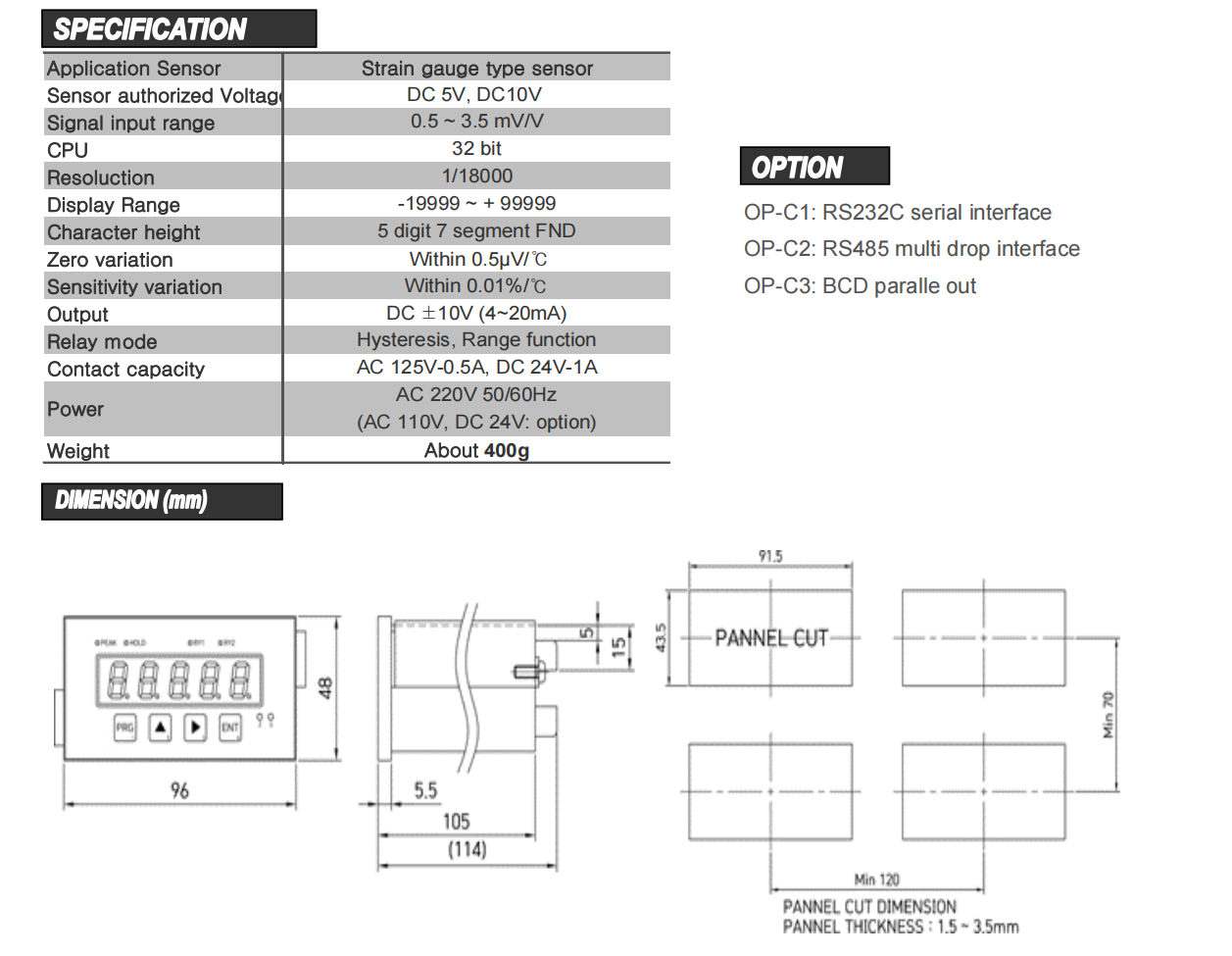

Specification
Application sensor |
Strain gauge type sensor |
Sensor authorized voltage |
DC 10V (DC 5V : Option) |
Signal input range |
0.5~3.5mV/V |
Display range |
-19999~+99999 |
Character height |
5 digit 7 segment FND |
Zero variation |
Within 0.5μV/°C |
Sensitivity variation |
Within 0.01%/°C |
Output |
DC0~10V(4~20mA : option) |
Contact capacity |
AC 125V-0.5A, AC 24V-1A |
Power |
AC220V 50/60Hz |
Weight |
About 700g |
Option
OP-C1 : RS232C serial interface
OP-C2 : RS485 multidrop interface
OP-C3 : BCD paralle out

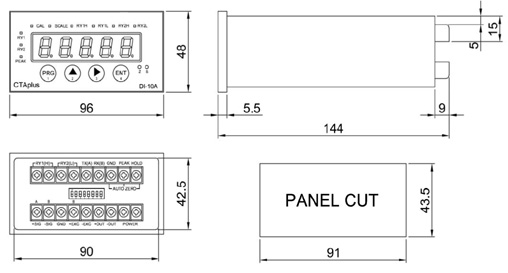

Dimension
