CT-200数字显示器
Digital Indicator
Feature
The product shows signal of sense and micro voltage output sense, which used strain gauge (load, torque pressure etc), into digital display and analogue output as indicator, and intermediate or high sampling and comparison output are available. Mainly it is used in the place where the dynamic measurement (screw down or charging of liquid..) is necessary.
High resolving power (24bit ADC, 16bit DAC)
High accuracy (over 0.01% F.S) and stability
Unit conversion (kg, N, lb, kg/cm2, bar, Mpa)
Analog Peak Hold
Rapid sampling speed (1000 times/sec)
Calibration of actual load and sensor output value
Auto zero function (Display & analogue out zero)

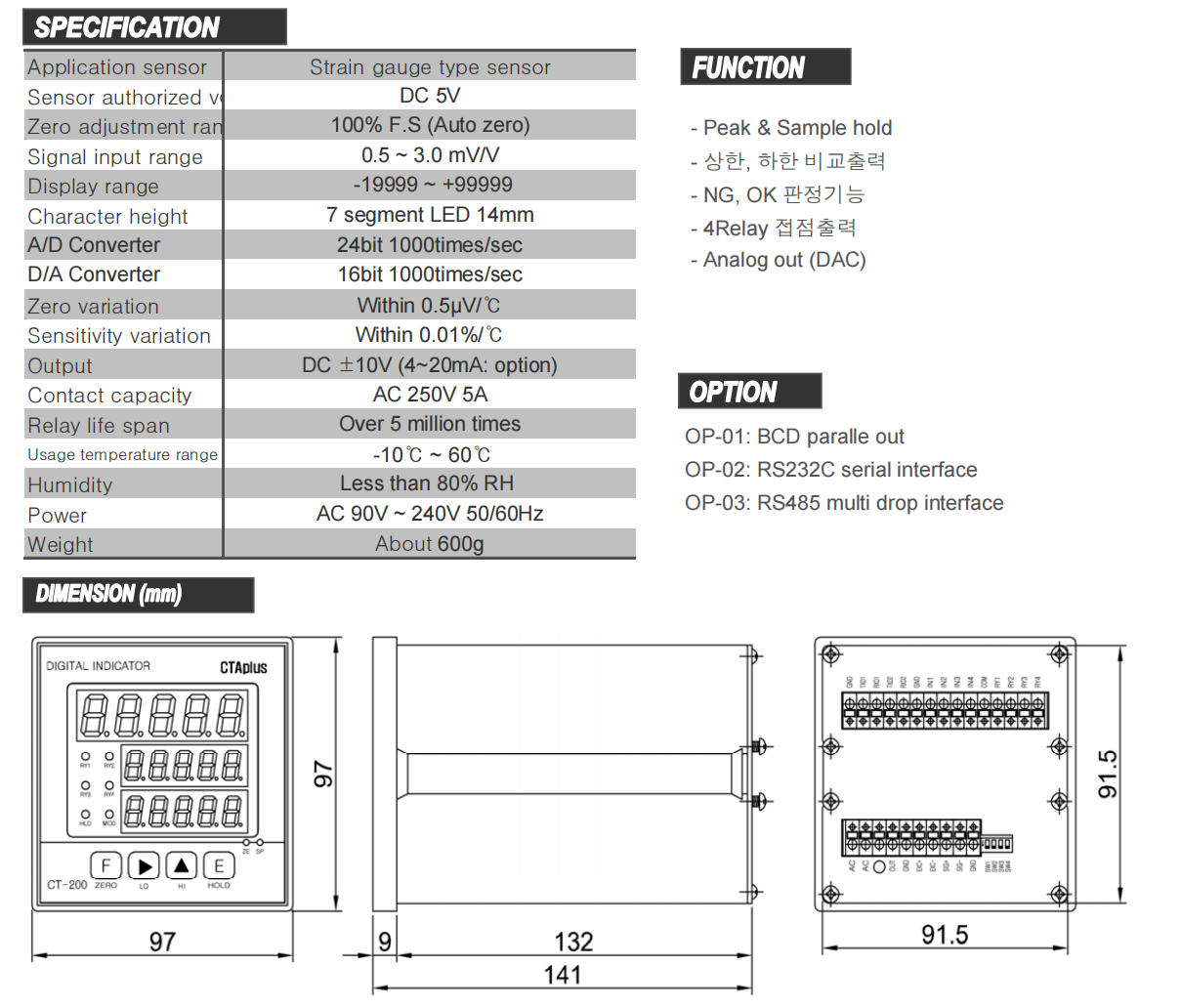

Specification
Application sensor |
Strain gauge type sensor |
Sensor authorized voltage |
DC 5V |
Zero adjustment range |
100% F.S(Auto zero) |
Signal input range |
0.5~3mV/V |
Display range |
-19999~+99999 |
Character height |
7 segment LED 14mm |
A/D converter |
16bit 1000 times/sec |
D/A converter |
12bit 1000 times/sec |
Zero variation |
Within 0.5μV/°C |
Sensitivity variation |
Within 0.01%/°C |
Output |
DC 0~10V(4~20mA : Option) |
Contact capacity |
AC 250V 5A |
Relay life span |
Over 5 million times |
Usage temperature range |
-10°C ~ 60°C |
Humidity |
Less than 80% RH |
Power |
AC 90V ~ 240V 50/60Hz |
Weight |
About 600g |
Function
Peak & Sample hold
Upper and lower limit comparison output
NG, OK decision function
4 Relay out
Analog out(DAC)
Option
OP-01 : BCD paralle out
OP-02 : RS232C serial interface
OP-03 : RS485 multi drop interface

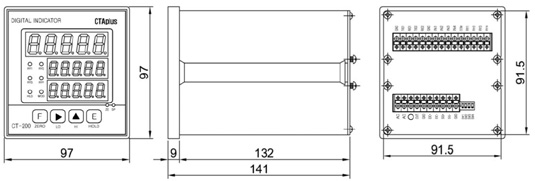

Dimension
