CT-130数字显示器
Digital Indicator
Feature
The product is indicator that can use torque and RPM measurement at the same time. Digital display and analogue output, comparison output are availabe.
Torque & RPM simultaneous measurement
High resolving power (24bit ADC, 16bit DAC)
High accuracy (over 0.01% F.S) and stability
Unit conversion (kg, N, lb, kg/cm2, bar, Mpa)
Rapid sampling speed (1000 times/sec)
System error automatic return
Calibration of actual load and sensor output value
Auto zero function (Display & analogue out zero)
Specification
Application sensor |
Torque |
RPM |
Strain gauge type torque sensor |
Proximity sensor(MP-981) |
|
Sensor authorized voltage |
DC 5V |
DC 12V |
Zero adjustment range |
100% F.S(Auto zero) |
|
Signal input range |
0.5~3mV/V |
1~350 pulse/circle |
Display range |
-19999~+99999 |
0~60000 |
Character height |
7 segment LED 14mm |
|
A/D converter |
24bit 1000 times/sec |
|
D/A converter |
16bit 1000 times/sec |
|
Zero variation |
Within 0.5μV/°C |
|
Sensitivity variation |
Within 0.01%/°C |
|
Output |
DC0~10V(4~20mA : option) |
|
Contact capacity |
AC 250V 5A |
|
Relay life span |
Over 5 million times |
|
Usage temperature range |
-10°C~60°C |
|
Humidity |
Less than 80% RH |
|
Power |
AC 90~240V 50/60Hz |
|
Weight |
About 600g |
|
Function
Peak & Sample hold
Upper and lower limit comparison output
Analog out(DAC)
Option
OP-02: RS232C serial interface
OP-03: RS485 multi drop interface

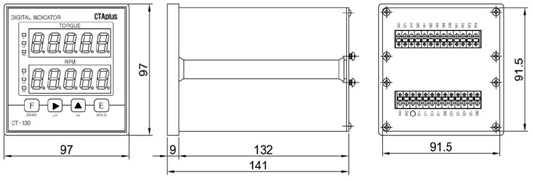

Dimension
