CT-120数字显示器
Digital Indicator
Feature
This product is sensor of measuring physical volume (load, displacement, pressure, torque etc) and is suitable for sensor that can be output minuteness current voltage. Also, this has battery-powered that can be used where power supply is difficult.
In addtion to, display has small liquid crystal display.
Simple outdoor using in use of battery
Rapid sampling speed (100 times/sec)
High resolving power (16bit A/D)
High accuracy (over 0.05% F.S) and stability
One touch auto zero (Display zero)
Calibration of actual load and sensor output value
System error automatic return

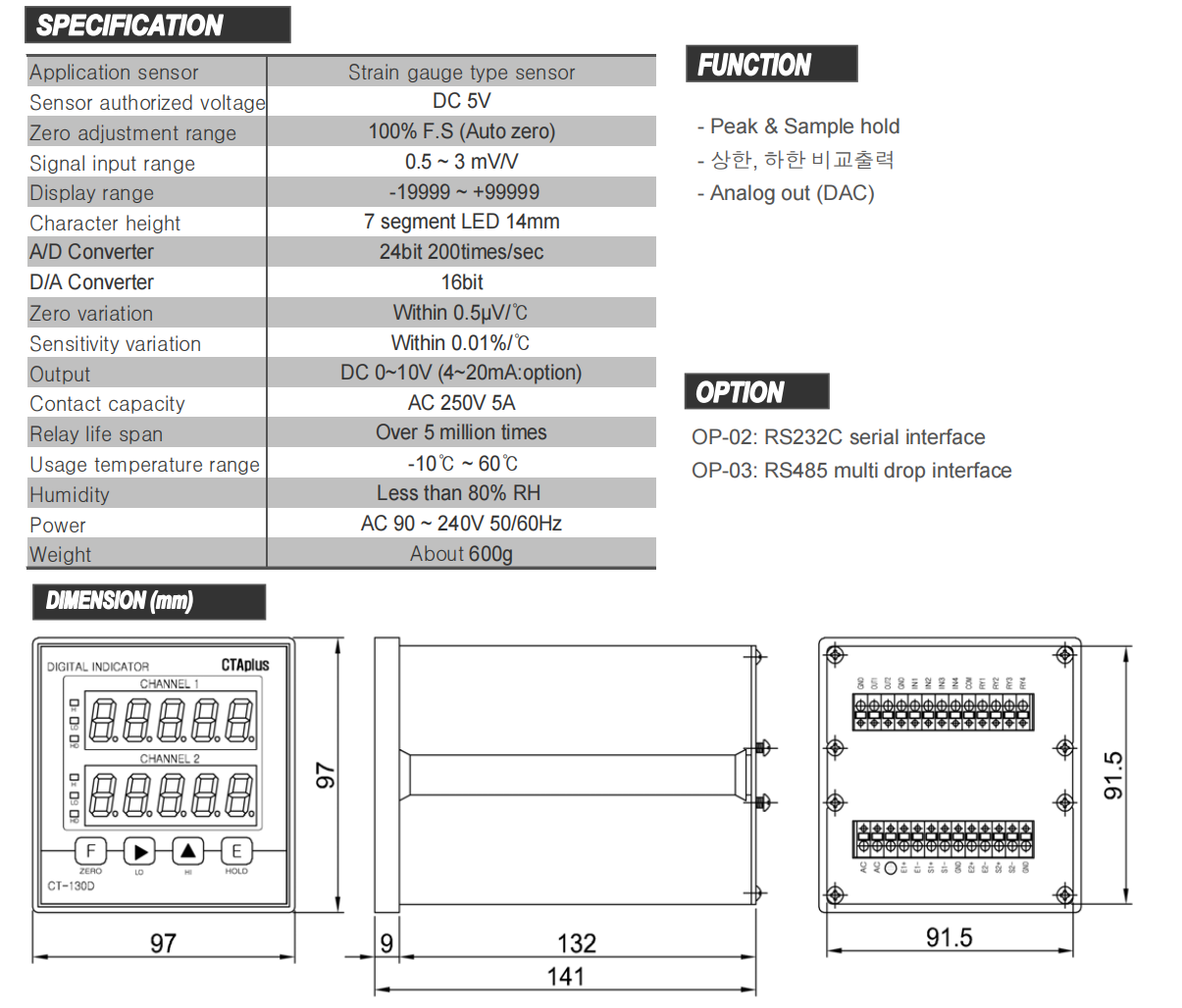

Specification
Application sensor |
Strain gauge type sensor |
Sensor authorized voltage |
DC 5V |
Zero adjustment range |
100% F.S(Auto zero) |
Signal input range |
0.5~3mV/V |
Display range |
19999 |
Display speed |
About 30 times/sec |
Character height |
4 1/2 digit LCD |
A/D |
16bit 100 times/sec |
Zero variation |
Within 0.5μV/°C |
Sensitivity variation |
Within 0.01%/°C |
Usage temperature range |
-10°C~60°C |
Humidity |
Less than 80% RH |
Power |
DC 7.2V(600mAh) recharging battery |
Weight |
About 500g |
Function
Peak & Sample hold
Upper and lower limit comparison output (open collector out)
Option
OP-02: RS232C serial interface
OP-03: RS485 multi drop interface

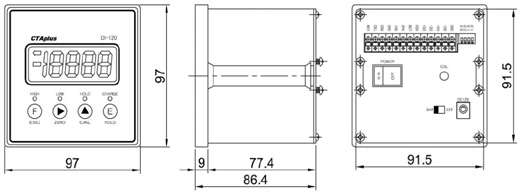

Dimension
