CT-130D数字显示器
Digital Indicator
Feature
The product is 2 channels indicator to operate with strain gauge sensors such as fast measurement of load cell, pressure transducer, torque transducer, LVDT etc.
Digital display and analogue output, comparison output are available.
2 channel indicator
High resolving power (24bit ADC, 16bit DAC)
High accuracy (over 0.01% F.S) and stability
Unit conversion (kg, N, âÂÂb, kg/ã , bar, Mpa)
System error automatic return
Calibration of catual load and sensor output value
Auto zero function (Display & analogue out zero)

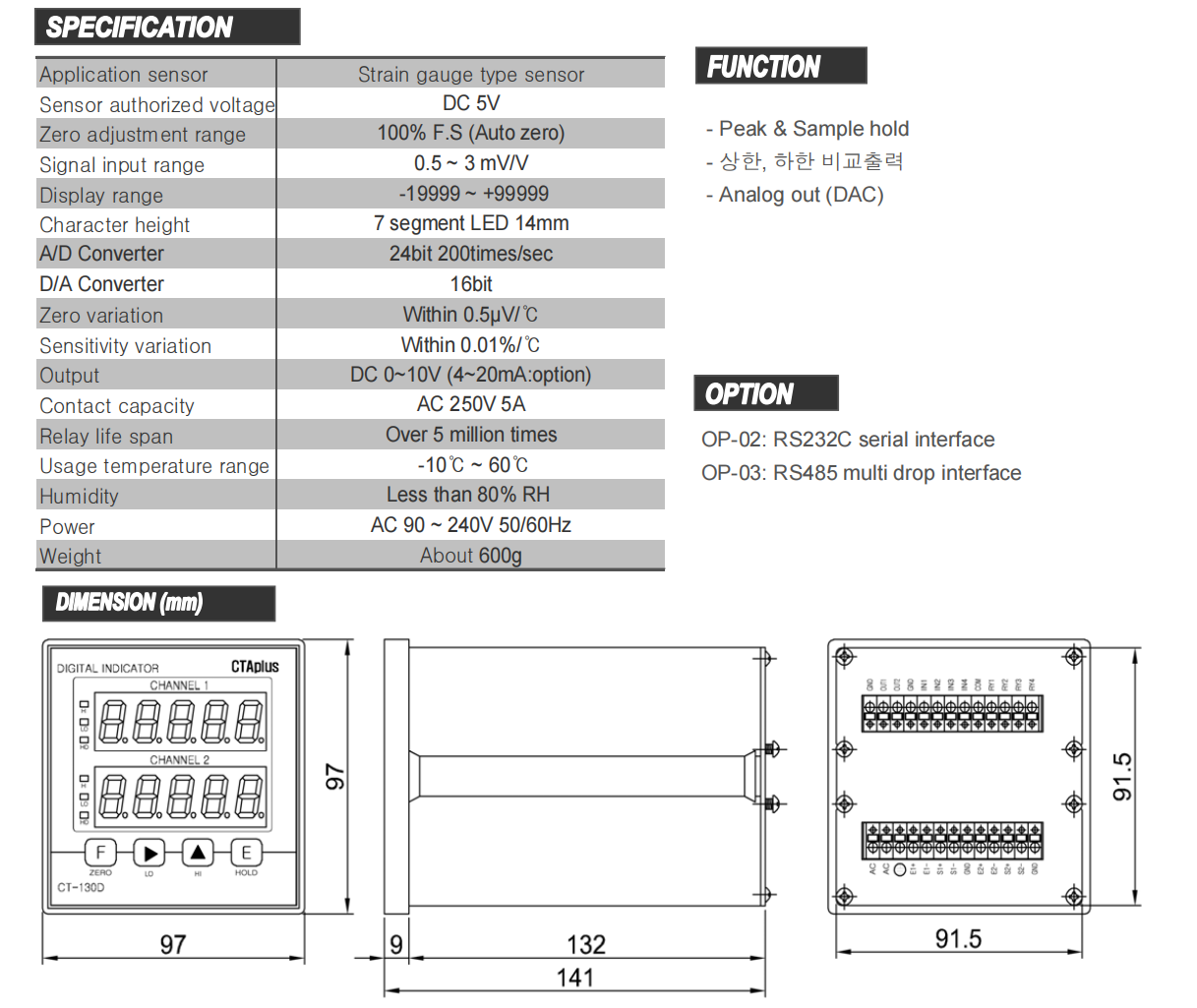

Specification
Application sensor |
Strain gauge type sensor |
Sensor authorized voltage |
DC 5V |
Zero adjustment range |
100% F.S(Auto zero) |
Signal input range |
0.5~3mV/V |
Display range |
-19999~+99999 |
Character height |
7 segment LED 14mm |
A/D converter |
24bit 1000 times/sec |
D/A converter |
16bit |
Zero variation |
Within 0.5μV/°C |
Sensitivity variation |
Within 0.01%/°C |
Output |
DC 0~10V(4~20mA : Option) |
Contact capacity |
AC 250V 5A |
Relay life span |
Over 5 million times |
Usage temperature range |
-10°C ~ 60°C |
Humidity |
Less than 80% RH |
Power |
AC 90V ~ 240V 50/60Hz |
Weight |
About 600g |
Function
Peak & Sample hold
Upper and lower limit comparison output
Analog out(DAC)
Option
OP-02 : RS232C serial interface
OP-03 : RS485 multi drop interface

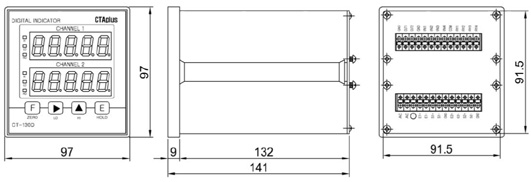

Dimension
