CT-20W数字显示表
Digital Indicator
Feature
The product shows signal of voltage and current output sensor where the amplifier is not necessity, specially the thing which is suitable in pressure and the displacement measurement sensor. A/D it converts the output signal of sensor and do a digital display and analogut output, relay output.
Best for measuring pressure, displacement
Rapid sampling speed (100 times/sec)
High resolving power (16bit A/D)
High accuracy (over 0.02% F.S) and stability
One touch Auto zero (Display & Analog out zero)
Calibration of actual load and sensor output value
Syetem error automatic return

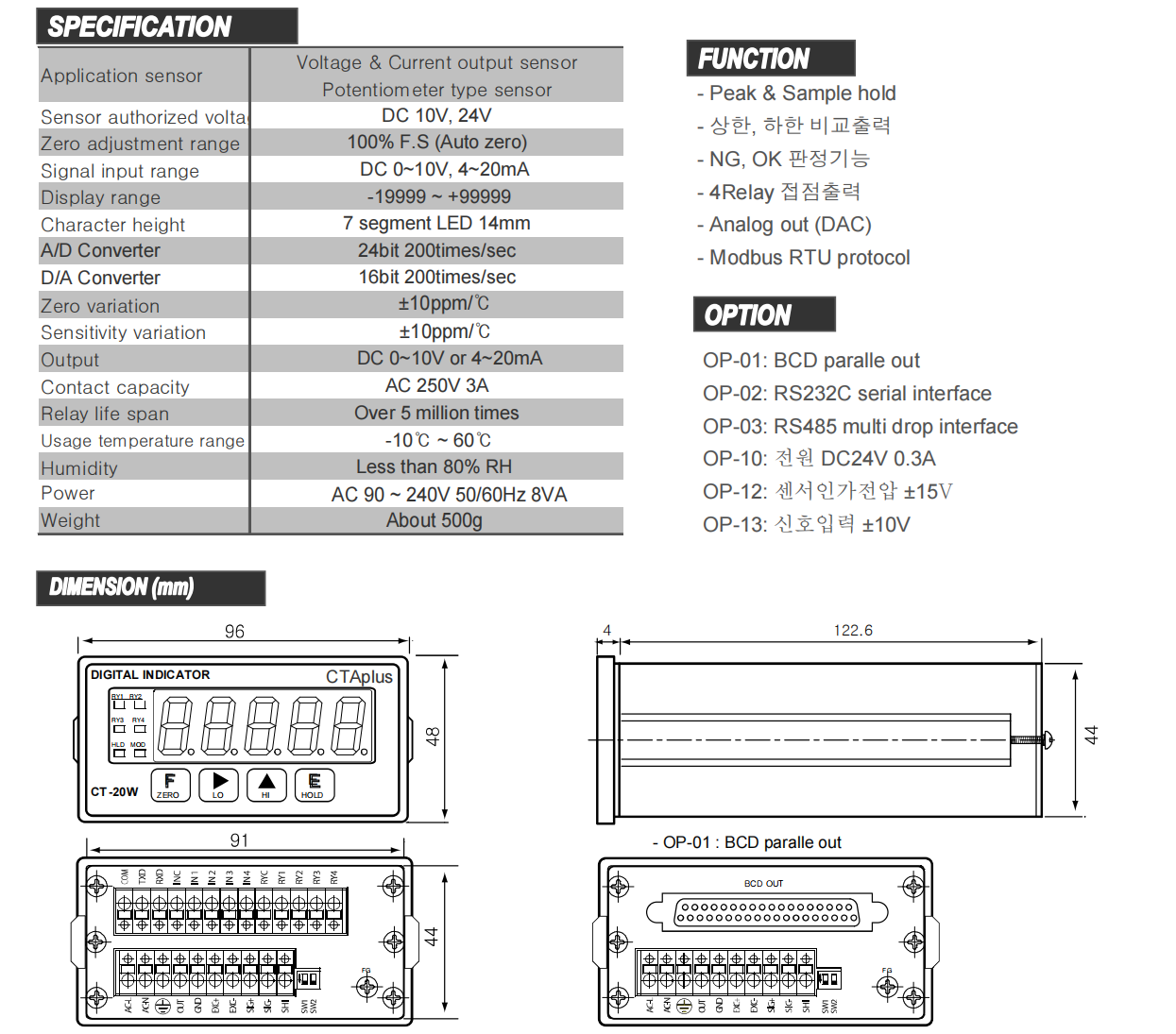

Specification
Application sensor |
Voltage & current output sensor |
Sensor authorized voltage |
DC 10V, 24V |
Zero adjustment range |
100% F.S(Auto zero) |
Signal input range |
DC 0~10V, 4~20mA |
Display range |
-19999~+99999 |
Character height |
7 segment LED 14mm |
A/D converter |
16bit 100times/sec |
D/A converter |
12bit |
Zero variation |
Within 0.5μV/°C |
Sensitivity variation |
Within 0.01%/°C |
Output |
DC 0~10V(4~20mA : Option) |
Contact capacity |
AC 250V 5A |
Relay life span |
Over 5 million times |
usage temperature range |
-10°C~60°C |
Humidity |
Less than 80%RH |
Power |
AC 220V 50/60Hz |
Weight |
About 800g |
Function
Peak & Sample hold
Upper and lower limit comparison output
NG, OK decision function
4 Relay out
Analog out(DAC)
Option
OP-01 : BCD parallel out
OP-02 : RS232C serial interface
OP-03 : RS485 multi drop interface
OP-05 : 8 step open collector output

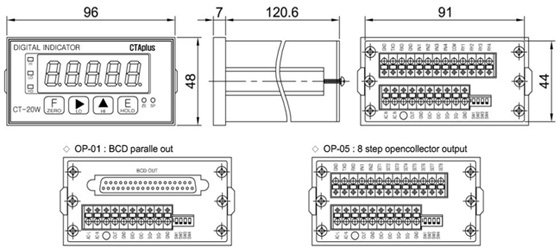

Dimension
